2046210 | OBO Bettermann

Cable gland, PG21, 30/33 mm, Clamping range 17 to 19 mm, IP65, silver, 2046210

Order No.: 06N3670
EAN: 4012195182115
MPN:
2046210
159 MS PG21
2046210 OBO Bettermann Cable Glands

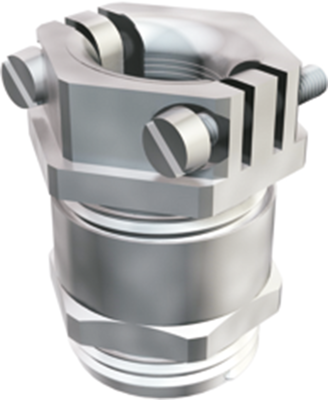

Image may differ
Unit Price (€ / pc.)
17.3026 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
432.56 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 pcs.
17.3026 €

Metal cable glands, type OBO Bettermann 20.

Compliant with DIN 46320, form C4, with hexagon socket base and small sealing ring; Material: brass, nickel-plated.

With additional bending protection, type 20.

Absolute strain relief by tightening the two screws.

Technical attributes (type, Pg size, cable diameter): 2046210, Pg 21, 17 to 19 mm

Technical specifications
Filter Property Value
Degree of protection (IP) IP65
Material brass, nickel-plated
spanner size 30/33 mm
min. clamping range 17 mm
max. clamping range 19 mm
Thread size PG21
Product type cable gland
Colour silver
Length 32 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 74153900
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
