2046113 | OBO Bettermann

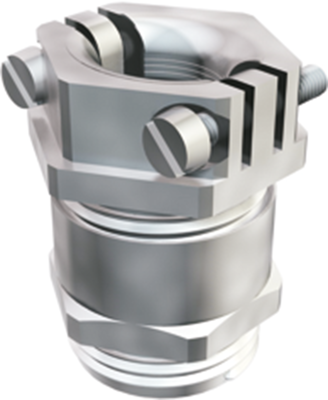

Cable gland, PG11, 22 mm, Clamping range 8 to 10 mm, IP54, silver, 2046113
Order No.: 06N3664
EAN: 4012195181934
MPN:
2046113
159 MS PG11
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
12.1023 € *
Available: 19 pcs.
Total Price:
12.10 € *
Price list
Quantity
Price per unit*
1 pcs.
12.1023 €
10 pcs.
11.2931 €
50 pcs.
10.4839 €
100 pcs.
9.6747 €
*incl. VAT plus shipping costs
Subject to prior sale
Metal cable glands, type OBO Bettermann 20.
Compliant with DIN 46320, form C4, with hexagon socket base and small sealing ring; Material: brass, nickel-plated.
With additional bending protection, type 20.
Absolute strain relief by tightening the two screws.
Technical attributes (type, Pg size, cable diameter): 2046113, Pg 11, 8.0 to 10 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable gland | |
| Thread size | PG11 | |
| min. clamping range | 8 mm | |
| max. clamping range | 10 mm | |
| spanner size | 22 mm | |
| Length | 25 mm | |
| Degree of protection (IP) | IP54 | |
| Material | brass, nickel-plated | |
| Colour | silver |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 74153900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
