2046091 | OBO Bettermann
Cable gland, PG9, 19 mm, Clamping range 6 to 8 mm, IP54, silver, 2046091
Order No.: 06N3662
EAN: 4012195181873
MPN:
2046091
159 MS PG 9
Unit Price (€ / pc.)
11.9357 € *
Available: 24 pcs.
Total Price:
11.94 € *
Price list
Quantity
Price per unit*
1 pcs.
11.9357 €
10 pcs.
10.5077 €
50 pcs.
9.7818 €
150 pcs.
9.3653 €
500 pcs.
8.8774 €
*incl. VAT plus shipping costs
Subject to prior sale

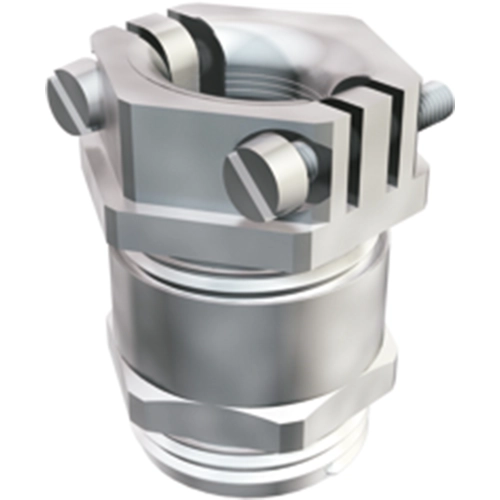

Metal cable glands, type OBO Bettermann 20.
Compliant with DIN 46320, form C4, with hexagon socket base and small sealing ring; Material: brass, nickel-plated.
With additional bending protection, type 20.
Absolute strain relief by tightening the two screws.
Technical attributes (type, Pg size, cable diameter): 2046091, Pg 9, 6.0 to 8.0 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| spanner size | 19 mm | |
| Length | 24 mm | |
| Colour | silver | |
| Material | brass, nickel-plated | |
| Thread size | PG9 | |
| min. clamping range | 6 mm | |
| max. clamping range | 8 mm | |
| Degree of protection (IP) | IP54 | |
| Product type | cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74153900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
