2046075 | OBO Bettermann
Cable gland, PG7, 16 mm, Clamping range 5 to 7 mm, IP54, silver, 2046075
Order No.: 06N3660
EAN: 4012195181811
MPN:
2046075
159 MS PG 7
Unit Price (€ / pc.)
8.6156 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
430.78 € *
Price list
Quantity
Price per unit*
50 pcs.
8.6156 €
150 pcs.
8.2467 €
500 pcs.
7.8183 €
*incl. VAT plus shipping costs
Subject to prior sale

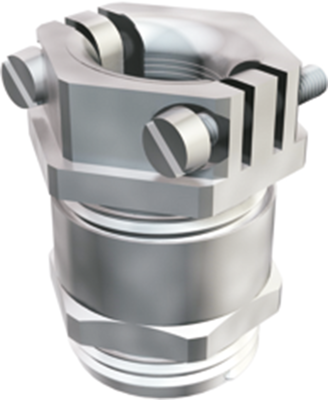

Metal cable glands, type OBO Bettermann 20.
Compliant with DIN 46320, form C4, with hexagon socket base and small sealing ring; Material: brass, nickel-plated.
With additional bending protection, type 20.
Absolute strain relief by tightening the two screws.
Technical attributes (type, Pg size, cable diameter): 2046075, Pg 7, 5.0 to 7.0 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP54 | |
| Material | brass, nickel-plated | |
| spanner size | 16 mm | |
| min. clamping range | 5 mm | |
| max. clamping range | 7 mm | |
| Thread size | PG7 | |
| Product type | cable gland | |
| Colour | silver | |
| Length | 22 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 74153900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
