2035324 | OBO Bettermann
Cable gland, M16, 16/19 mm, Clamping range 4.5 to 7 mm, IP65, light gray, 2035324
Order No.: 46P1063
EAN: 4012195465072
MPN:
2035324
106 M16 PS
Unit Price (€ / pc.)
0.6545 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
32.73 € *
Price list
Quantity
Price per unit*
50 pcs.
0.6545 €
100 pcs.
0.5950 €
*incl. VAT plus shipping costs
Subject to prior sale

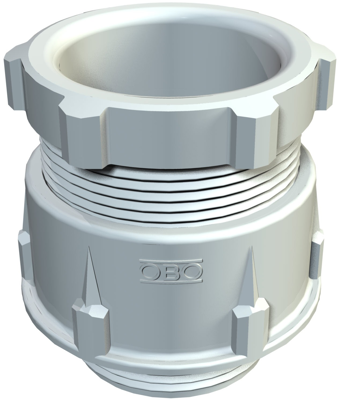

Cable gland, 106 M16 PS, OBO Bettermann
Standard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring with metric connection thread to IEC 423.
Protection rating: with connection thread sealing ring IP65.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable gland | |
| Thread size | M16 | |
| min. clamping range | 4.5 mm | |
| max. clamping range | 7 mm | |
| spanner size | 16/19 mm | |
| Length | 25 mm | |
| Degree of protection (IP) | IP65 | |
| Material | PS | |
| Colour | light gray |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
