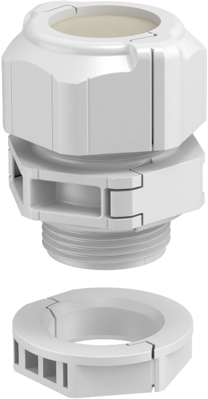

Cable gland, divisible, M32, 40/46 mm, IP67, light gray, 2024970
Order No.: 46P1488
EAN: 4012196536627
MPN:
2024970
V-TEC TB32
Unit Price (€ / pc.)
51.3842 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
256.92 € *
Price list
Quantity
Price per unit*
5 pcs.
51.3842 €
10 pcs.
47.2311 €
25 pcs.
44.4465 €
50 pcs.
41.6738 €
*incl. VAT plus shipping costs
Subject to prior sale
Divisible cable gland, 2024970, OBO Bettermann

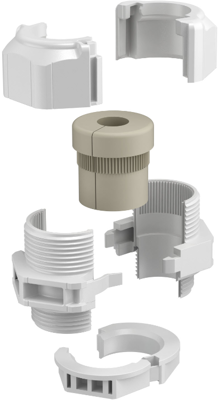

The splittable cable gland V-TEC TB ensures - like all V-TEC glands - a secure sealing of the cable. The installation of pre-terminated cables or function cables, for example, is easy and quick, thanks to the splitting of the cable gland. The V-TEC TB is also unbeatable when refitting an existing installation and as a "repair gland". There is no need to disassemble pre-mounted cables, it can be installed without interrupting the production process.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 80 °C | |
| spanner size | 40/46 mm | |
| Length | 41 mm | |
| min. operating temperature | -20 °C | |
| Colour | light gray | |
| Material | PC | |
| Thread size | M32 | |
| Degree of protection (IP) | IP67 | |
| Product type | cable gland | |
| Version | divisible |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
