2024940 | OBO Bettermann
Cable gland, divisible, M20, 27/30 mm, IP67, light gray, 2024940
Order No.: 46P1486
EAN: 4012196536610
MPN:
2024940
V-TEC TB20
Unit Price (€ / pc.)
37.9967 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
189.98 € *
Price list
Quantity
Price per unit*
5 pcs.
37.9967 €
10 pcs.
34.9146 €
25 pcs.
32.8559 €
50 pcs.
30.7972 €
*incl. VAT plus shipping costs
Subject to prior sale

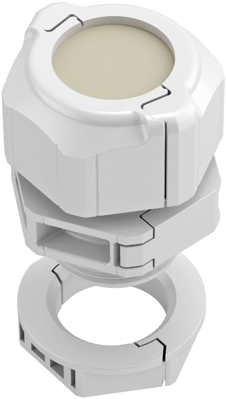

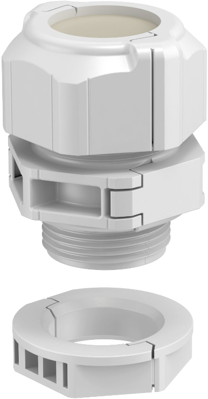

Divisible cable gland, 2024940, OBO Bettermann
The splittable cable gland V-TEC TB ensures - like all V-TEC glands - a secure sealing of the cable. The installation of pre-terminated cables or function cables, for example, is easy and quick, thanks to the splitting of the cable gland. The V-TEC TB is also unbeatable when refitting an existing installation and as a "repair gland". There is no need to disassemble pre-mounted cables, it can be installed without interrupting the production process.

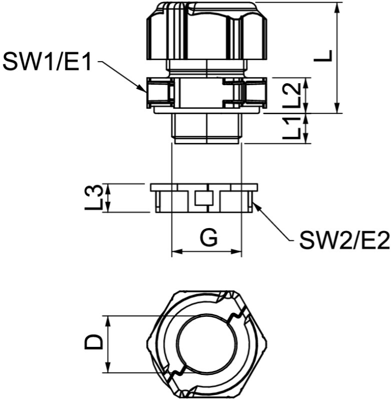

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP67 | |
| Colour | light gray | |
| Product type | cable gland | |
| spanner size | 27/30 mm | |
| Version | divisible | |
| Thread size | M20 | |
| max. operating temperature | 80 °C | |
| Length | 30.5 mm | |
| min. operating temperature | -20 °C | |
| Material | PC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
