2024910 | OBO Bettermann
Cable gland, divisible, M25, 31/35 mm, IP67, light gray, 2024910
Order No.: 46P1487
EAN: 4012196334506
MPN:
2024910
V-TEC TB25
Unit Price (€ / pc.)
44.5298 € *
Available: 6 pcs.
Total Price:
44.53 € *
Price list
Quantity
Price per unit*
1 pcs.
44.5298 €
5 pcs.
41.1978 €
10 pcs.
37.8539 €
25 pcs.
35.6286 €
50 pcs.
33.4033 €
*incl. VAT plus shipping costs
Subject to prior sale

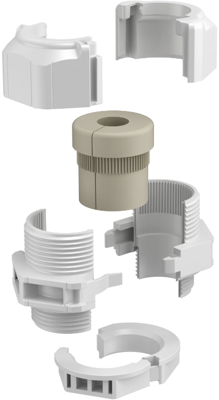

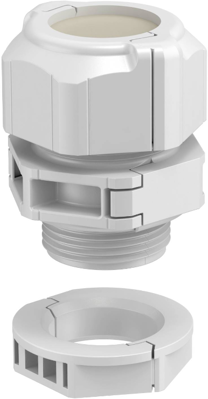

Divisible cable gland, 2024910, OBO Bettermann
The splittable cable gland V-TEC TB ensures - like all V-TEC glands - a secure sealing of the cable. The installation of pre-terminated cables or function cables, for example, is easy and quick, thanks to the splitting of the cable gland. The V-TEC TB is also unbeatable when refitting an existing installation and as a "repair gland". There is no need to disassemble pre-mounted cables, it can be installed without interrupting the production process.

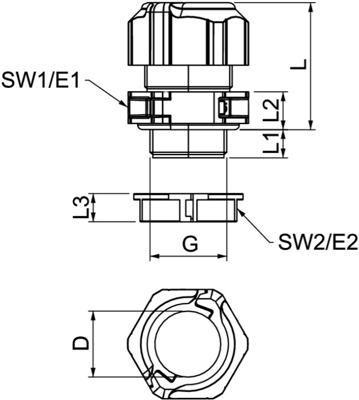

Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 80 °C | |
| spanner size | 31/35 mm | |
| Length | 40 mm | |
| min. operating temperature | -20 °C | |
| Colour | light gray | |
| Material | PC | |
| Thread size | M25 | |
| Degree of protection (IP) | IP67 | |
| Product type | cable gland | |
| Version | divisible |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
