2024802 | OBO Bettermann

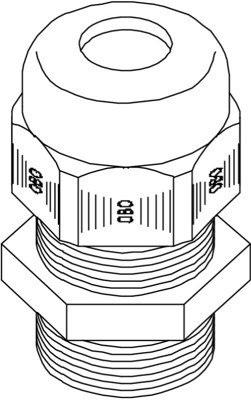

Cable gland, PG48, 65 mm, Clamping range 30 to 44 mm, IP68, light gray, 2024802
Order No.: 46P1245
EAN: 4012195447313
MPN:
2024802
V-TEC PG48 LGR
Unit Price (€ / pc.)
11.3764 € *
Standard delivery time from the manufacturer is: 3 Weeks
Cable gland, 2024802, OBO Bettermann
Cable gland with PG connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.

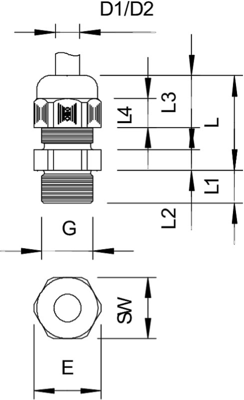

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable gland | |
| Thread size | PG48 | |
| min. clamping range | 30 mm | |
| max. clamping range | 44 mm | |
| spanner size | 65 mm | |
| Length | 58 mm | |
| Degree of protection (IP) | IP68 | |
| Material | PA | |
| Colour | light gray | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 65 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
