Cable gland, PG29, 42 mm, Clamping range 14 to 25 mm, IP68, light gray, 2024772
Order No.: 46P1239
EAN: 4012195447139
MPN:
2024772
V-TEC PG29 LGR
Unit Price (€ / pc.)
13.2566 € *
Standard delivery time from the manufacturer is: 1 Week

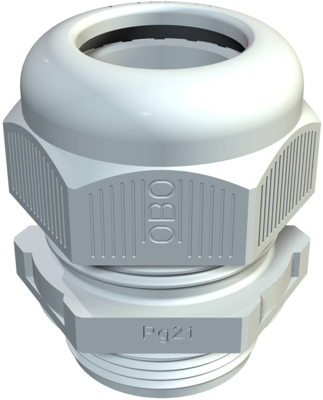

Cable gland, 2024772, OBO Bettermann
Cable gland with PG connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
Technical specifications
Colour | light gray | |
Degree of protection (IP) | IP68 | |
max. clamping range | 25 mm | |
Length | 43 mm | |
Product type | cable gland | |
min. operating temperature | -20 °C | |
Material | PA | |
spanner size | 42 mm | |
max. operating temperature | 65 °C | |
min. clamping range | 14 mm | |
Thread size | PG29 |
Download
Logistics
Customs tariff number | 39269097 |
Compliance
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
RoHS conform | Yes |
