2024756 | OBO Bettermann
Cable gland, PG16, 27 mm, Clamping range 7 to 14 mm, IP68, light gray, 2024756
Order No.: 46P1235
EAN: 4012195447016
MPN:
2024756
V-TEC PG16 LGR
Unit Price (€ / pc.)
1.1662 € *
Standard delivery time from the manufacturer is: 1 Week

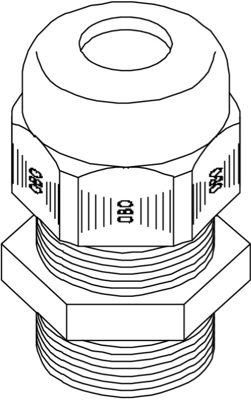

Cable gland, 2024756, OBO Bettermann
Cable gland with PG connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable gland | |
| Thread size | PG16 | |
| min. clamping range | 7 mm | |
| max. clamping range | 14 mm | |
| spanner size | 27 mm | |
| Length | 33 mm | |
| Degree of protection (IP) | IP68 | |
| Material | PA | |
| Colour | light gray | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 65 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
