2024713 | OBO Bettermann

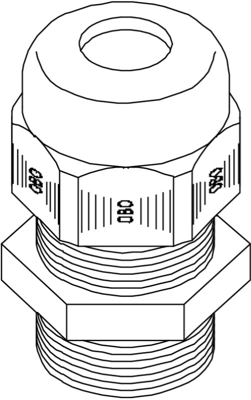

Cable gland, PG9, 19 mm, Clamping range 2.5 to 8 mm, IP68, light gray, 2024713
Order No.: 46P1249
EAN: 4012195446835
MPN:
2024713
V-TEC PG9 LGR
Unit Price (€ / pc.)
0.9163 € *
Standard delivery time from the manufacturer is: 1 Week
Cable gland, 2024713, OBO Bettermann
Cable gland with PG connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | light gray | |
| spanner size | 19 mm | |
| Material | PA | |
| Product type | cable gland | |
| Degree of protection (IP) | IP68 | |
| max. operating temperature | 65 °C | |
| min. operating temperature | -20 °C | |
| Thread size | PG9 | |
| min. clamping range | 2.5 mm | |
| Length | 27 mm | |
| max. clamping range | 8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
