2024663 | OBO Bettermann

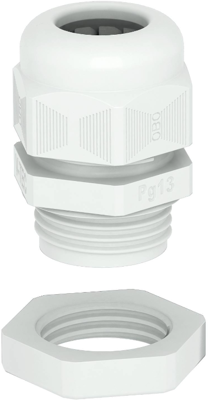

Cable gland, with locknut, PG16, 27/30 mm, Clamping range 7 to 14 mm, IP68, light gray, 2024663
Order No.: 46P1172
EAN: 4012195861072
MPN:
2024663
V-TEC PG16+ LGR
Unit Price (€ / pc.)
1.8207 € *
Standard delivery time from the manufacturer is: 1 Week
Cable gland, 2024663, OBO Bettermann
Cable gland with PG connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C. Including locknut.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP68 | |
| Material | PA | |
| max. operating temperature | 65 °C | |
| spanner size | 27/30 mm | |
| Version | with locknut | |
| min. clamping range | 7 mm | |
| max. clamping range | 14 mm | |
| Thread size | PG16 | |
| Product type | cable gland | |
| min. operating temperature | -20 °C | |
| Colour | light gray | |
| Length | 33 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
