2024063 | OBO Bettermann
Twin cable gland, M20, Clamping range 6.5 to 10.5 mm, IP54, light gray, 2024063
Order No.: 46P1912
EAN: 4012195088639
MPN:
2024063
113 M20 LGR
Unit Price (€ / pc.)
11.1027 € *
Standard delivery time from the manufacturer is: 1 Week

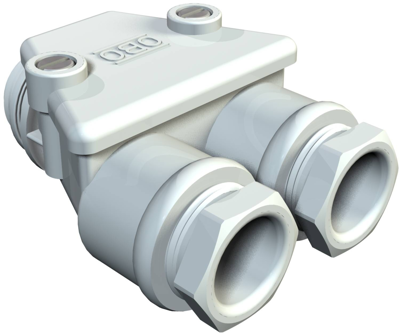

Twin cable gland, 2024063, OBO Bettermann
Twin cable gland metric thread, light grey, IP54 protection rating, with removable polystyrene lid, as well as two connection thread sealing rings made of polyethylene. With connection thread M20 x 1.5, 2 half glands PG 13.5 for cable diameter 6.5-10.5 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | light gray | |
| Degree of protection (IP) | IP54 | |
| Material | duroplastic | |
| max. clamping range | 10.5 mm | |
| min. clamping range | 6.5 mm | |

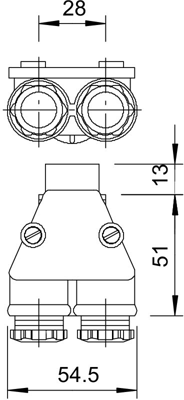

| Length | 54.5 mm | |
| Thread size | M20 | |
| Product type | twin cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
