2022985 | OBO Bettermann
Cable gland, M16, 20 mm, Clamping range 4.5 to 10 mm, IP68, black, 2022985
Order No.: 46P1214
EAN: 4012195812166
MPN:
2022985
V-TEC VM LL16 SW
Unit Price (€ / pc.)
3.9270 € *
Standard delivery time from the manufacturer is: 4 Weeks

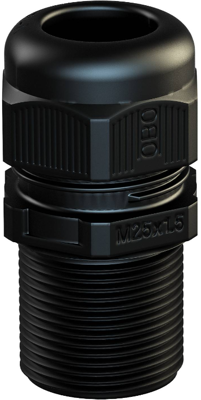

Cable gland, 2022985, OBO Bettermann
Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| spanner size | 20 mm | |
| Material | PA | |
| Product type | cable gland | |
| Degree of protection (IP) | IP68 | |
| max. operating temperature | 65 °C | |
| min. operating temperature | -20 °C | |
| Thread size | M16 | |
| min. clamping range | 4.5 mm | |
| Length | 29.5 mm | |
| max. clamping range | 10 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
