2022957 | OBO Bettermann
Cable gland, M63, 68 mm, Clamping range 36 to 48 mm, IP68, light gray, 2022957
Order No.: 46P1201
EAN: 4012195004301
MPN:
2022957
V-TEC VM L63 LGR
Unit Price (€ / pc.)
60.3449 € *
Standard delivery time from the manufacturer is: 3 Weeks

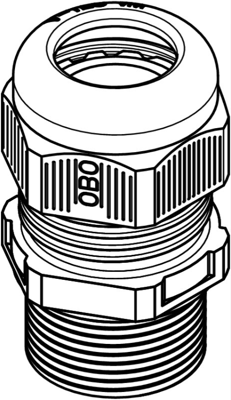

Cable gland, 2022957, OBO Bettermann
Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
Technical specifications
| Colour | light gray | |
| Degree of protection (IP) | IP68 | |
| max. clamping range | 48 mm | |
| Length | 60.3 mm | |
| Product type | cable gland | |
| min. operating temperature | -20 °C | |
| Material | PA | |
| spanner size | 68 mm | |
| max. operating temperature | 65 °C | |
| min. clamping range | 36 mm | |
| Thread size | M63 |
Download
Logistics
| Customs tariff number | 39269097 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
