2022947 | OBO Bettermann

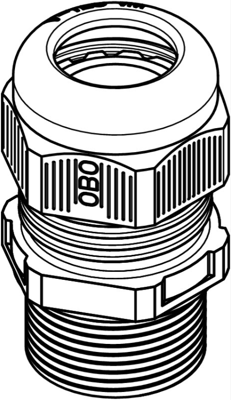

Cable gland, M20, 24 mm, Clamping range 6 to 13 mm, IP68, light gray, 2022947

Order No.: 46P1186
EAN: 4012195004158
MPN:
2022947
V-TEC VM L20 LGR
2022947 OBO Bettermann Cable Glands Image 1
2022947 OBO Bettermann Cable Glands Image 2
2022947 OBO Bettermann Cable Glands Image 3
Image may differ
Unit Price (€ / pc.)
4.4625 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
223.13 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
4.4625 €

Cable gland, 2022947, OBO Bettermann

Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.

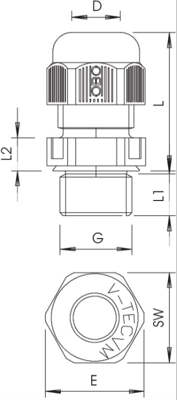

Technical specifications
Colour light gray
Degree of protection (IP) IP68
max. clamping range 13 mm
Length 32.5 mm
Product type cable gland
min. operating temperature -20 °C
Material PA
spanner size 24 mm
max. operating temperature 65 °C
min. clamping range 6 mm
Thread size M20
Logistics
Customs tariff number 39269097
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
