2022935 | OBO Bettermann

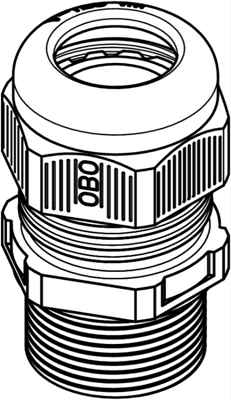

Cable gland, M50, 54 mm, Clamping range 23 to 35 mm, IP68, silver gray, 2022935
Order No.: 46P1199
EAN: 4012195004028
MPN:
2022935
V-TEC VM L50 SGR
Unit Price (€ / pc.)
54.2878 € *
Standard delivery time from the manufacturer is: On Request
Cable gland, 2022935, OBO Bettermann
Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | silver gray | |
| Degree of protection (IP) | IP68 | |
| max. clamping range | 35 mm | |
| Length | 54.3 mm | |
| Product type | cable gland | |
| min. operating temperature | -20 °C | |
| Material | PA | |
| spanner size | 54 mm | |
| max. operating temperature | 65 °C | |
| min. clamping range | 23 mm | |
| Thread size | M50 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
