2022933 | OBO Bettermann

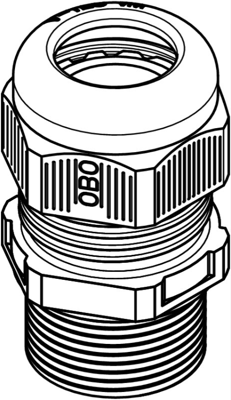

Cable gland, M40, 44 mm, Clamping range 16 to 28 mm, IP68, silver gray, 2022933
Order No.: 46P1196
EAN: 4012195004004
MPN:
2022933
V-TEC VM L40 SGR
Unit Price (€ / pc.)
24.2046 € *
Standard delivery time from the manufacturer is: 4 Weeks
Cable gland, 2022933, OBO Bettermann
Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.

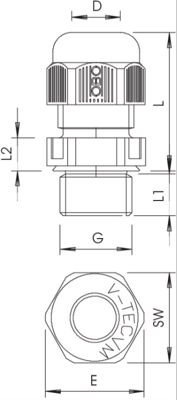

Technical specifications
| Filter | Property | Value |
|---|---|---|
| spanner size | 44 mm | |
| Colour | silver gray | |
| Degree of protection (IP) | IP68 | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 65 °C | |
| Material | PA | |
| max. clamping range | 28 mm | |
| min. clamping range | 16 mm | |
| Length | 46 mm | |
| Thread size | M40 | |
| Product type | cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
