2022870 | OBO Bettermann

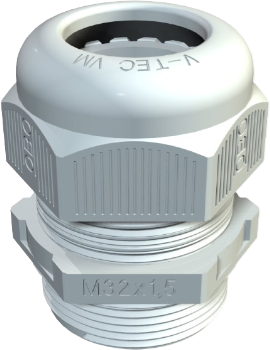

Cable gland, M32, 36 mm, IP68, light gray, 2022870
Order No.: 46P2132
EAN: 4012195533771
MPN:
2022870
V-TEC VM32 LGR
Unit Price (€ / pc.)
2.4038 € *
Standard delivery time from the manufacturer is: 1 Week
Cable gland, 2022870, OBO Bettermann
The 2022870 is a cable gland with metric connection thread in cap nut design suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP68 | |
| Material | PA | |
| max. operating temperature | 65 °C | |
| spanner size | 36 mm | |
| Thread size | M32 | |
| Product type | cable gland | |
| min. operating temperature | -20 °C | |
| Colour | light gray | |
| Length | 40 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
