2022866 | OBO Bettermann
Cable gland, M20, 24 mm, Clamping range 6 to 13 mm, IP68, light gray, 2022866
Order No.: 06N4314
EAN: 4012195533658
MPN:
2022866
V-TEC VM20 LGR
Unit Price (€ / pc.)
1.3566 € *
Available: 109 pcs.
Total Price:
1.36 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3566 €
10 pcs.
1.1900 €
50 pcs.
1.0710 €
100 pcs.
0.9758 €
500 pcs.
0.8687 €
*incl. VAT plus shipping costs
Subject to prior sale

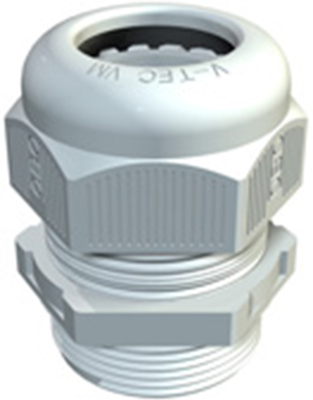

Polyamide cable glands, type OBO Bettermann V-TEC VM.
Industrial types, flame retardant to VDE 0471/IEC Part 1-2, test temperature 750 °C. Metric thread to IEC 423, robust cap nut type cable gland to meet high seal tightness requirements. Strain relief, anti-rotation feature and tightness across the entire clamping surface. Seal ring made of polychloroprene / acrylonitrile butadiene rubber. Molded sealing lip on the intermediate bush, eliminating the need for thread seal, VDE-tested to DIN EN 50262. Degree of protection IP 68 at 5.0 bar/1.0 hr; Operating temperatures: –20 to +65 °C.
Light-gray, type 2022.

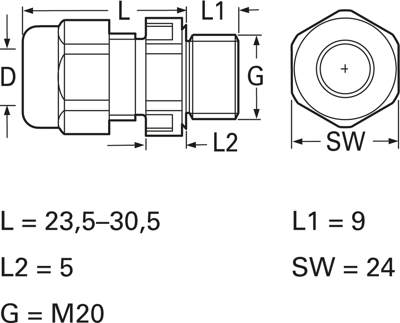

Technical attributes (type, size, cable diameter. width across flats W): 866, M 20, 6.0 to 13 mm, W 24
Technical specifications
| spanner size | 24 mm | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 65 °C | |
| Degree of protection (IP) | IP68 | |
| min. clamping range | 6 mm | |
| Thread size | M20 | |
| Length | 30.5 mm | |
| max. clamping range | 13 mm | |
| Colour | light gray | |
| Material | PA | |
| Product type | cable gland |
Download
Logistics
| Customs tariff number | 39269097 |
| Country of origin | HU |
Compliance
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
