2022851 | OBO Bettermann

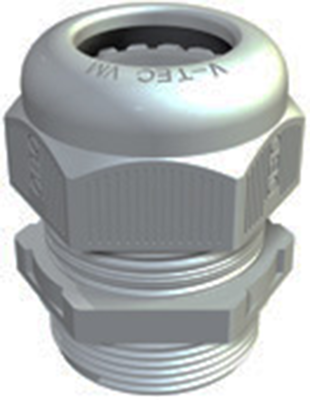

Cable gland, M32, 36 mm, Clamping range 15 to 21 mm, IP68, silver gray, 2022851
Order No.: 06N4308
EAN: 4012195532934
MPN:
2022851
V-TEC VM32 SGR
Unit Price (€ / pc.)
3.3082 € *
Available: 25 pcs.
Total Price:
3.31 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3082 €
10 pcs.
2.9036 €
50 pcs.
2.6418 €
100 pcs.
2.3800 €
500 pcs.
2.1182 €
*incl. VAT plus shipping costs
Subject to prior sale
Polyamide cable glands, type OBO Bettermann V-TEC VM.
Industrial types, flame retardant to VDE 0471/IEC Part 1-2, test temperature 750 °C. Metric thread to IEC 423, robust cap nut type cable gland to meet high seal tightness requirements. Strain relief, anti-rotation feature and tightness across the entire clamping surface. Seal ring made of polychloroprene / acrylonitrile butadiene rubber. Molded sealing lip on the intermediate bush, eliminating the need for thread seal, VDE-tested to DIN EN 50262. Degree of protection IP 68 at 5.0 bar/1.0 hr; Operating temperatures: –20 to +65 °C.
Silver-gray, type 2022.

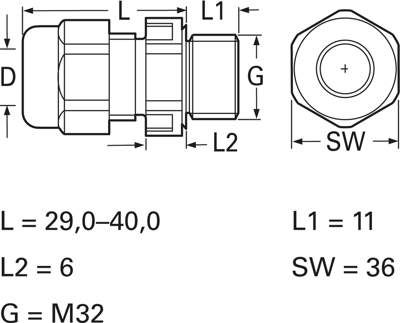

Technical attributes (type, size, cable diameter. width across flats W): 851, M 32, 15 to 21 mm, W 36
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | silver gray | |
| Thread size | M32 | |
| max. clamping range | 21 mm | |
| Degree of protection (IP) | IP68 | |
| Length | 40 mm | |
| max. operating temperature | 65 °C | |
| min. operating temperature | -20 °C | |
| spanner size | 36 mm | |
| Material | PA | |
| Product type | cable gland | |
| min. clamping range | 15 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
