2022845 | OBO Bettermann

Cable gland, M16, 20 mm, Clamping range 4.5 to 10 mm, IP68, silver gray, 2022845

Order No.: 06N4302
EAN: 4012195532699
MPN:
2022845
V-TEC VM16 SGR

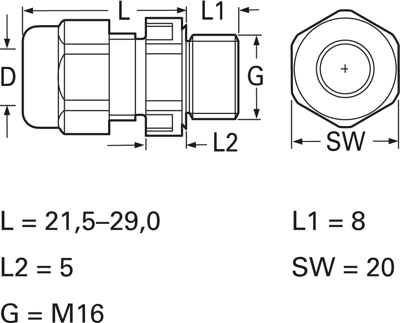

2022845 OBO Bettermann Cable Glands Image 1

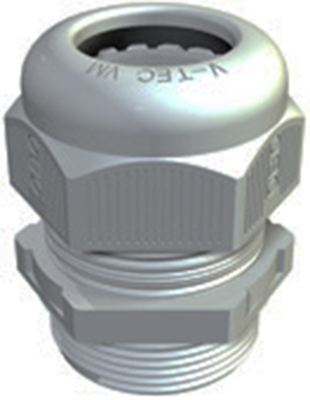

2022845 OBO Bettermann Cable Glands Image 2
Image may differ
Unit Price (€ / pc.)
1.1067 € *
Available: 35 pcs.
Total Price:
1.11 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1067 €
10 pcs.
0.9758 €
50 pcs.
0.8806 €
100 pcs.
0.7854 €
500 pcs.
0.7021 €
*incl. VAT plus shipping costs
Subject to prior sale

Polyamide cable glands, type OBO Bettermann V-TEC VM.

Industrial types, flame retardant to VDE 0471/IEC Part 1-2, test temperature 750 °C. Metric thread to IEC 423, robust cap nut type cable gland to meet high seal tightness requirements. Strain relief, anti-rotation feature and tightness across the entire clamping surface. Seal ring made of polychloroprene / acrylonitrile butadiene rubber. Molded sealing lip on the intermediate bush, eliminating the need for thread seal, VDE-tested to DIN EN 50262. Degree of protection IP 68 at 5.0 bar/1.0 hr; Operating temperatures: –20 to +65 °C.

Silver-gray, type 2022.

Technical attributes (type, size, cable diameter. width across flats W): 845, M16, 4.5 to 10 mm, W 20

Technical specifications
Filter Property Value
min. clamping range 4.5 mm
max. operating temperature 65 °C
Material PA
min. operating temperature -20 °C
Colour silver gray
spanner size 20 mm
Thread size M16
Degree of protection (IP) IP68
max. clamping range 10 mm
Product type cable gland
Length 29 mm
Logistics
Property Value
Country of origin HU
Customs tariff number 39269097
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
