2022672 | OBO Bettermann
Cable gland, PG29, 42 mm, Clamping range 14 to 25 mm, IP68, silver gray, 2022672
Order No.: 46P1240
EAN: 4012195161059
MPN:
2022672
V-TEC PG29 SGR
Unit Price (€ / pc.)
13.2566 € *
Standard delivery time from the manufacturer is: 4 Weeks

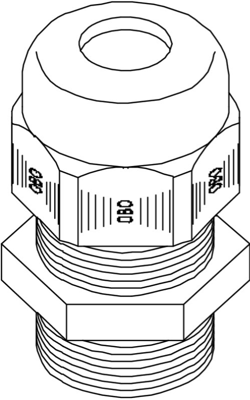

Cable gland, 2022672, OBO Bettermann
Cable gland with PG connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP68 | |
| Material | PA | |
| max. operating temperature | 65 °C | |
| spanner size | 42 mm | |
| min. clamping range | 14 mm | |
| max. clamping range | 25 mm | |
| Thread size | PG29 | |
| Product type | cable gland | |
| min. operating temperature | -20 °C | |
| Colour | silver gray | |
| Length | 43 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
