2022656 | OBO Bettermann

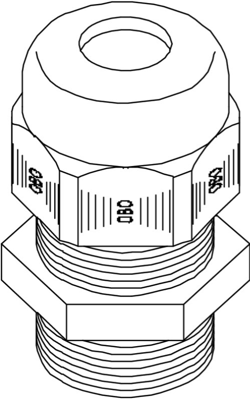

Cable gland, PG16, 27 mm, Clamping range 7 to 14 mm, IP68, silver gray, 2022656
Order No.: 46P1236
EAN: 4012195160939
MPN:
2022656
V-TEC PG16 SGR
Unit Price (€ / pc.)
4.5934 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Cable gland, 2022656, OBO Bettermann
Cable gland with PG connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
Technical specifications
| Colour | silver gray | |
| Degree of protection (IP) | IP68 | |
| max. clamping range | 14 mm | |
| Length | 33 mm | |
| Product type | cable gland | |
| min. operating temperature | -20 °C | |
| Material | PA | |
| spanner size | 27 mm | |
| max. operating temperature | 65 °C | |
| min. clamping range | 7 mm | |
| Thread size | PG16 |
Download
Logistics
| Customs tariff number | 39269097 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
