2022648 | OBO Bettermann

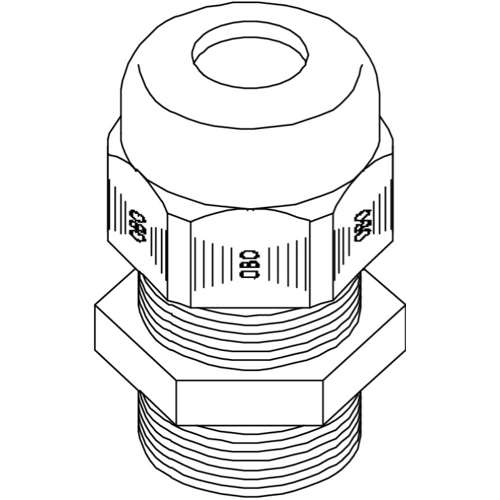

Cable gland, PG13.5, 24 mm, Clamping range 5 to 12 mm, IP68, silver gray, 2022648
Order No.: 46P1234
EAN: 4012195160878
MPN:
2022648
V-TEC PG13.5 SGR
Unit Price (€ / pc.)
1.0591 € *
Standard delivery time from the manufacturer is: 4 Weeks
Cable gland, 2022648, OBO Bettermann
Cable gland with PG connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | silver gray | |
| spanner size | 24 mm | |
| Material | PA | |
| Product type | cable gland | |
| Degree of protection (IP) | IP68 | |
| max. operating temperature | 65 °C | |
| min. operating temperature | -20 °C | |
| Thread size | PG13.5 | |
| min. clamping range | 5 mm | |
| Length | 30 mm | |
| max. clamping range | 12 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
