2022138 | OBO Bettermann

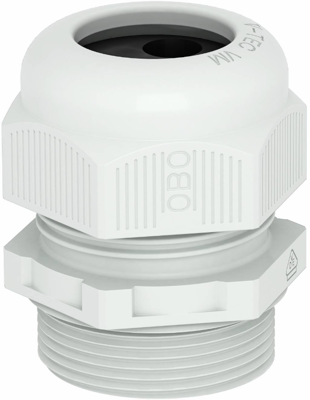

Cable gland, M32, 36 mm, IP68, light gray, 2022138
Order No.: 46P1213
EAN: 4012195896685
MPN:
2022138
V-TEC VM32 4x8
Unit Price (€ / pc.)
12.1142 € *
Standard delivery time from the manufacturer is: 4 Weeks
Cable gland, 2022138, OBO Bettermann
Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between -20°C and +65°C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -20 °C | |
| Thread size | M32 | |
| Length | 40 mm | |
| Product type | cable gland | |
| max. operating temperature | 65 °C | |
| Colour | light gray | |
| Material | PA | |
| spanner size | 36 mm | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
