2022122 | OBO Bettermann
Cable gland, M25, 29 mm, IP68, light gray, 2022122
Order No.: 46P1209
EAN: 4012195896586
MPN:
2022122
V-TEC VM25 3x6
Unit Price (€ / pc.)
7.735 € *
Available: 25 pcs.

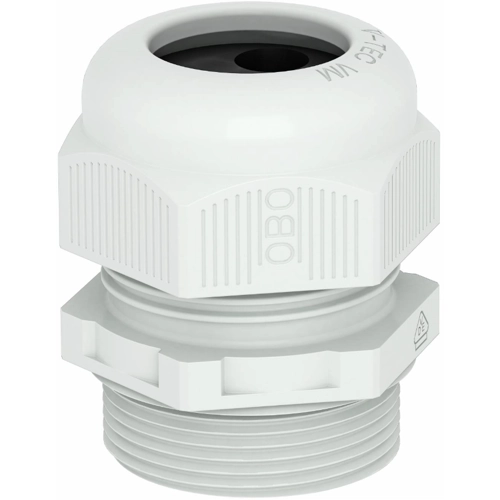

Cable gland, 2022122, OBO Bettermann
Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between -20°C and +65°C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PA | |
| Thread size | M25 | |
| min. operating temperature | -20 °C | |
| Product type | cable gland | |
| Length | 35 mm | |
| spanner size | 29 mm | |
| Degree of protection (IP) | IP68 | |
| Colour | light gray | |
| max. operating temperature | 65 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
