2022120 | OBO Bettermann
Cable gland, M25, 29 mm, IP68, light gray, 2022120
Order No.: 46P1211
EAN: 4012195896579
MPN:
2022120
V-TEC VM25 5x4
Unit Price (€ / pc.)
7.735 € *
Standard delivery time from the manufacturer is: 6 Weeks

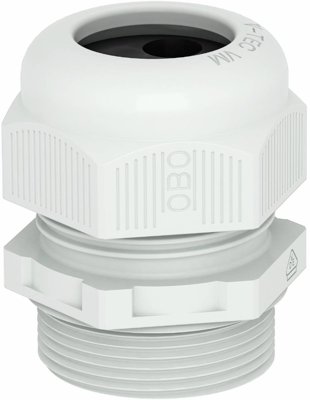

Cable gland, 2022120, OBO Bettermann
Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between -20°C and +65°C.

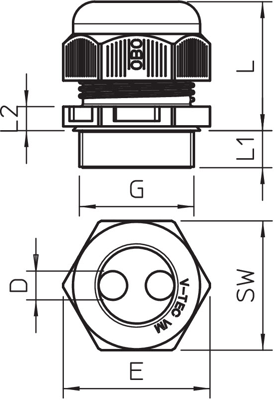

Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 65 °C | |
| spanner size | 29 mm | |
| Length | 35 mm | |
| min. operating temperature | -20 °C | |
| Colour | light gray | |
| Material | PA | |
| Thread size | M25 | |
| Degree of protection (IP) | IP68 | |
| Product type | cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
