2022110 | OBO Bettermann

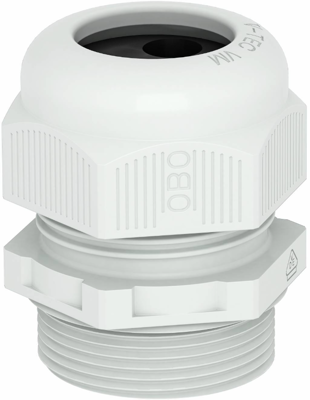

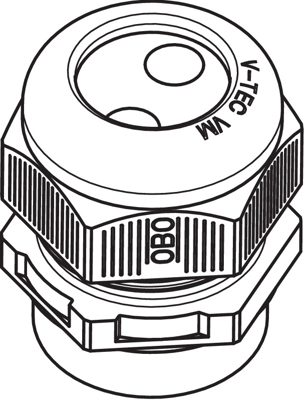

Cable gland, M20, 24 mm, IP68, light gray, 2022110
Order No.: 46P1204
EAN: 4012195896517
MPN:
2022110
V-TEC VM20 2x4
Unit Price (€ / pc.)
5.1289 € *
Standard delivery time from the manufacturer is: 8 Weeks
Cable gland, 2022110, OBO Bettermann
Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between -20°C and +65°C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable gland | |

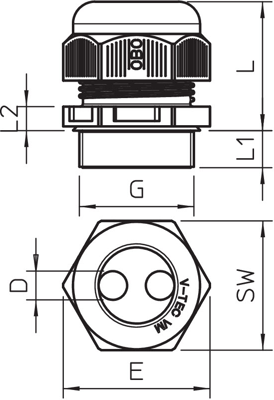

| Thread size | M20 | |
| spanner size | 24 mm | |
| Length | 30.5 mm | |
| Degree of protection (IP) | IP68 | |
| Material | PA | |
| Colour | light gray | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 65 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
