2013019 | OBO Bettermann

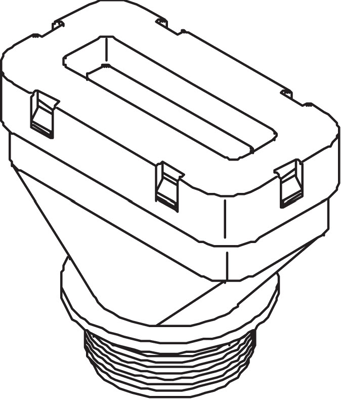

Ribbon cable gland, 26-29 mm, M32, Clamping range 8 to 10 mm, IP31, stone gray, 2013019

Order No.: 46P1048
EAN: 4012195515951
MPN:
2013019
106 FL M32 10 29
2013019 OBO Bettermann Cable Glands Image 1
2013019 OBO Bettermann Cable Glands Image 2
2013019 OBO Bettermann Cable Glands Image 3
Image may differ
Unit Price (€ / pc.)
8.6394 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
129.59 € *
*incl. VAT plus shipping costs
Subject to prior sale
15 pcs.
8.6394 €

Flat cable threaded connection, 106 FL M32 10 29, OBO Bettermann

Flat-cable entry, choke-nipple design with metric connecting thread to IEC 432, protection rating IP31, with pre-mounted support sealing ring 107/F.

Technical specifications
Filter Property Value
Degree of protection (IP) IP31
Material PE
Version 26-29 mm
min. clamping range 8 mm
max. clamping range 10 mm
Thread size M32
Product type ribbon cable gland
Colour stone gray
Length 59 mm
Logistics
Property Value
Customs tariff number 39269097
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
