S9S12G128F0MLF | NXP

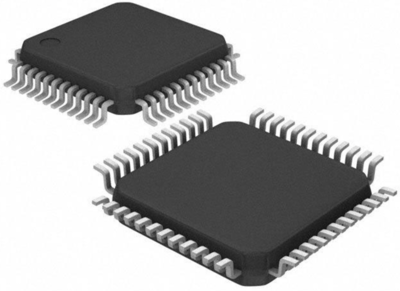

12V1 microcontroller, 16 bit, 25 MHz, LQFP-48, S9S12G128F0MLF
Unit Price (€ / pc.)
4.7957 € *
Standard delivery time from the manufacturer is: 28 Weeks
Microcontroller, S9S12G128F0MLF, NXP
The S9S12G128F0MLF is an optimized, automotive, 16 bit microcontroller product line focused on low-cost, high-performance, and low pin-count.
Features
- S12 CPU core
- Up to 240 Kbyte of program flash memory
- 4–16 MHz amplitude controlled Pierce oscillator
- Up to 11 Kbytes of general-purpose RAM
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core Size | 16 bit | |
| Number of I/Os | 40 | |
| Enclosure | LQFP-48 | |
| Number of pins | 48 | |
| max. operating temperature | 125 °C | |
| Assembly | SMD | |
| Memory size | 128 KB | |
| min. operating temperature | -40 °C | |
| Data RAM Size | 8 KB | |
| Processor core | 12V1 | |
| Version | flash | |
| Voltage | 3.13-5.5 V | |
| Clock frequency | 25 MHz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423190 |
| MSL | MSL 3 |
| Original Packaging | Tray with 250 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
