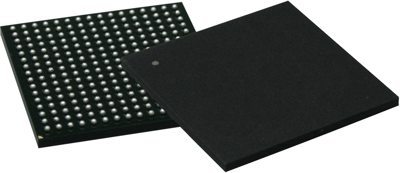

LPC4333JET256,551 | NXP
ARM Cortex M4/M0 microcontroller, 32 bit, 204 MHz, LBGA-256, LPC4333JET256,551
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
12.8401 € *
Standard delivery time from the manufacturer is: 13 Weeks
ARM Cortex M4/M0 microcontroller, LPC4333JET256,551, NXP
The LPC4333JET256,551 is ARM Cortex-M4 based microcontroller with Floating Point Unit (FPU) for embedded applications which include an ARM Cortex-M0 coprocessor, up to 1 MB of flash and 136 kB of on-chip SRAM, 16 kB of EEPROM memory, two high-speed USB controllers, Ethernet, LCD, an external memory controller, a quad SPI Flash Interface (SPIFI) that supports execute-in-place, advanced configurable peripherals such as the State Configurable Timer (SCTimer/PWM) and the Serial General Purpose I/O (SGPIO) interface, and multiple digital and analog peripherals.
Applications
- Motor control
- Power management
- White goods
- RFID readers
- Embedded audio applications
- Industrial automation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | LBGA-256 | |
| Assembly | SMD | |
| Version | flash | |
| Processor core | ARM Cortex M4/M0 | |
| Core Size | 32 bit | |
| Clock frequency | 204 MHz | |
| Number of I/Os | 164 | |
| Memory size | 512 KB | |
| Data RAM Size | 136 KB | |
| Voltage | 2.2-3.6 V | |
| Number of pins | 256 | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423190 |
| MSL | MSL 3 |
| Original Packaging | Tray with 90 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
