LPC2220FBD144 | NXP

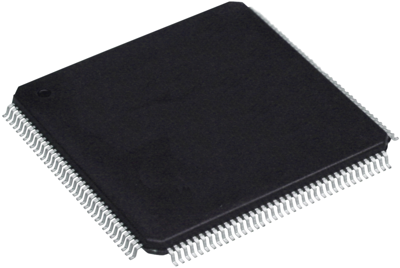

ARM7 microcontroller, 16/32 bit, 75 MHz, LQFP-144, LPC2220FBD144
Unit Price (€ / pc.)
10.8647 € *
Standard delivery time from the manufacturer is: On Request
ARM7 microcontroller, LPC2220FBD144, NXP
The LPC2220FBD144 microcontroller is based on a 16/32-bit ARM7TDMI-S CPU with real-time emulation and embedded trace support. With its 144-pin package, low power consumption, various 32-bit timers, 8-channel 10-bit ADC, PWM channels, and up to nine external interrupt pins this microcontroller is particularly suitable for industrial control, medical systems, access control and point-of-sale.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | ROMLess | |
| Clock frequency | 75 MHz | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| Core Size | 16/32 bit | |
| Number of pins | 144 | |
| Number of I/Os | 76 | |
| Data RAM Size | 64 KB | |
| Enclosure | LQFP-144 | |
| Processor core | ARM7 | |
| Voltage | 1.65-3.6 V | |
| Assembly | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Tray with 60 pieces |
| MSL | MSL 2 |
| Customs tariff number | 85423190 |
| Country of origin | PH |
