LPC2103FBD48EL | NXP

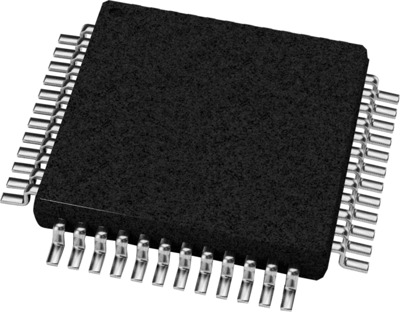

ARM7 microcontroller, 16/32 bit, 70 MHz, LQFP-48, LPC2103FBD48EL
Unit Price (€ / pc.)
7.1162 € *
Standard delivery time from the manufacturer is: 1 Week
Microcontroller, LPC2103FBD48,151, NXP
The LPC2103FBD48 is a 16-/32-bit Microcontroller based on ARM7TDMI-S core with real-time emulation that combines the microcontroller with 32kB of embedded high-speed flash memory. A 128-bit wide memory interface and an unique accelerator architecture enable 32-bit code execution at the maximum clock rate.
Features
- Deep power-down mode with option to retain SRAM memory and/or RTC
- Three levels of flash code read protection (CRP) implemented
- ISP/IAP via on-chip bootloader software
- Single flash sector or full chip erase in 100ms and programming of 256bytes in 1ms
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Memory size | 32 KB | |
| max. operating temperature | 85 °C | |
| Core Size | 16/32 bit | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Clock frequency | 70 MHz | |
| Processor core | ARM7 | |
| Voltage | 1.65-3.6 V | |
| Number of I/Os | 32 | |
| Data RAM Size | 8 KB | |
| Number of pins | 48 | |
| Version | flash | |
| Enclosure | LQFP-48 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423190 |
| MSL | MSL 1 |
| Original Packaging | Tray with 250 pieces |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
