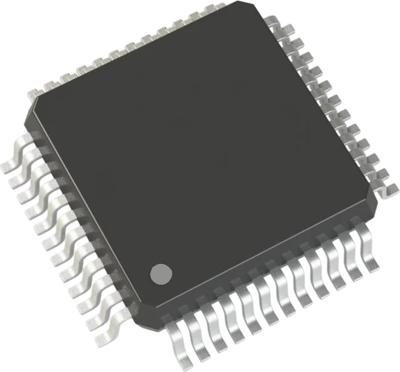

LPC2101FBD48,151 | NXP
ARM7 microcontroller, 32 bit, 70 MHz, LQFP-48, LPC2101FBD48,151
Unit Price (€ / pc.)
5.0456 € *
Standard delivery time from the manufacturer is: 1 Week
Single-chip microcontroller, LPC2101FBD48,151, NXP
The LPC2101FBD48,151 microcontroller is based on a 32-bit ARM7TDMI-S CPU with real-time emulation that combines the microcontroller with 8 kB of embedded high-speed flash memory, 2 kB of SRAM, and 8 inputs. A 128-bit wide memory interface and a unique accelerator architecture enable 32-bit code execution at the maximum clock rate. For critical performance in interrupt service routines and DSP algorithms, this increases performance by up to 30% over Thumb mode. For critical code size applications, the alternative 16-bit Thumb mode reduces code by more than 30% with minimal performance penalty. Due to its tiny size and low power consumption, the LPC2101/02/03 is ideal for applications where miniaturization is a key requirement.
Features
- Deep power-down mode with option to retain SRAM memory and/or RTC
- Three levels of flash Code Read Protection (CRP) implemented
- Embedded ICE-RT offers real-time debugging with the on-chip RealMonitor software
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | LQFP-48 | |
| Assembly | SMD | |
| Version | flash | |
| Processor core | ARM7 | |
| Core Size | 32 bit | |
| Clock frequency | 70 MHz | |
| Number of I/Os | 32 | |
| Memory size | 8 KB | |
| Data RAM Size | 2 KB | |
| Protocol | I2C, SPI, SSI, SSP, UART/USART | |
| Voltage | 1.65-3.6 V | |
| Number of pins | 48 | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
