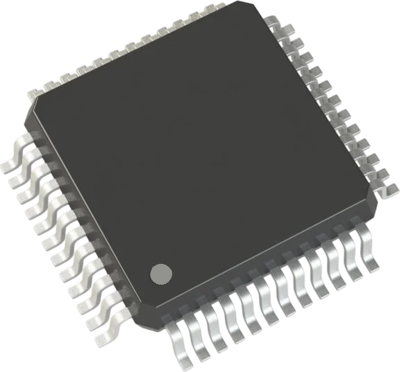

LPC1226FBD48/301,1 | NXP

ARM Cortex microcontroller, LPC1226FBD48/301,1, NXP

The LPC1226FBD48/301,1 microcontroller extends NXP's 32-bit ARM microcontroller continuum and targets a wide range of industrial applications in factory and home automation. Benefitting from the ARM Cortex-M0 Thumb instruction set, the LPC1226FBD48/301,1 achieves up to 50% higher code density compared to common 8-bit microcontrollers performing typical tasks. It also features an optimized ROM-based divide library for Cortex-M0, offering several times the arithmetic performance of software-based libraries, along with highly deterministic cycle times and reduced flash code size. The efficiency of the ARM Cortex-M0 core also helps the LPC1226FBD48/301,1 achieve lower average power consumption for similar applications.

Features

• Clock output function with divider that can reflect the system oscillator clock, IRC clock, main clock, and Watchdog clock
• Micro DMA controller with 21 channels
• Programmable output drive on all GPIO pins. Four pins support high-current output drivers
• All GPIO pins can be used as edge and level sensitive interrupt sources
• Processor wake-up from Deep-sleep mode via start logic using 12 port pins
• Brownout detect with three separate thresholds each for interrupt and forced reset
• Power-On Reset (POR)

Applications

• eMetering
• Lighting
• Industrial networking
• Alarm systems
• White goods
