TJA1040T/CM,118 | NXP

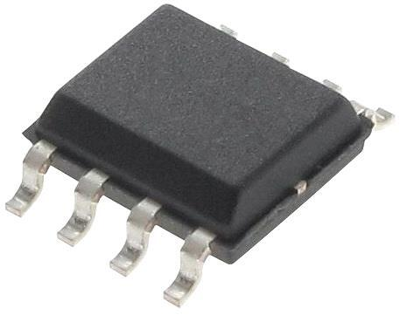

High speed CAN transceiver, SOIC-8, NXP TJA1040T/CM,118
Unit Price (€ / pc.)
1.0829 € *
Standard delivery time from the manufacturer is: 10 Weeks
Transceiver, TJA1040T/CM,118, NXP
The TJA1040 is the interface between the Controller Area Network (CAN) protocol controller and the physical bus. It is primarily intended for high speed applications, up to 1 MBaud, in passenger cars. The device provides differential transmit capability to the bus and differential receive capability to the CAN controller.
Features
- Fully compatible with the ISO 11898 standard
- High speed (up to 1 MBaud)
- Very low-current standby mode with remote wake-up capability via the bus
- Very low ElectroMagnetic Emission (EME)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -40 °C | |
| max. operating temperature | 150 °C | |
| Enclosure | SOIC-8 | |
| Product type | high speed CAN transceiver | |
| Assembly | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 2,500 pieces |
| Customs tariff number | 85423390 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
