HEF4543BP | NXP

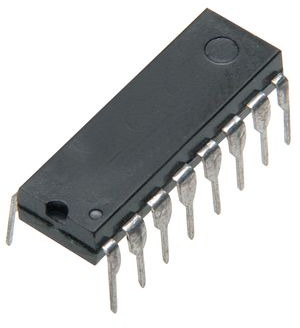

BCD to 7-segment latch/decoder/driver, PDIP-16, NXP HEF4543BP
No longer available from manufacturer
Unit Price (€ / pc.)
1.1067 € *
Available: 281 pcs.
Total Price:
5.53 € *
Price list
Quantity
Price per unit*
5 pcs.
1.1067 €
25 pcs.
1.0234 €
150 pcs.
0.9520 €
500 pcs.
0.8806 €
1000 pcs.
0.8449 €
*incl. VAT plus shipping costs
Subject to prior sale
BCD to 7-segment latch/decoder/driver, HEF4543BP, NXP
The HEF4543BP is a BCD to 7-segment Latch/Decoder/Driver for liquid crystal and LED displays. It has four address inputs (D0 to D3), an active low latch enable input (LE), an active high blanking input (BL), an active high phase input (PH) and seven buffered segment outputs (Qa to Qg). The circuit provides the function of a 4-bit storage latch and an 8-4-2-1 BCD to 7-segment decoder/driver. It can invert the logic levels of the output combination. The phase (PH), blanking (BL) and latch enable (LE) inputs are used to reverse the function table phase, blank the display and store a BCD code, respectively.
Features
- Fully static operation
- 5 V, 10 V, and 15 V parametric ratings
- Standardized symmetrical output characteristics
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| Assembly | THT | |
| Output current | 10 mA | |
| Enclosure | PDIP-16 | |
| Product type | BCD to 7-segment latch/decoder/driver |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| Country of origin | TH |
| Original Packaging | Bar with 50 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
