HEF4093BT,653 | NXP

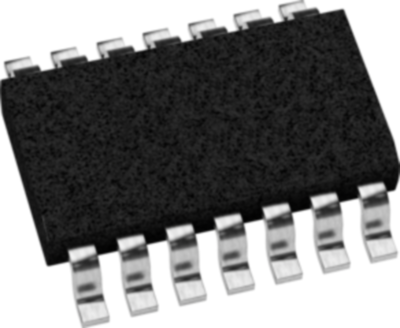

Quad 2-Input NAND Schmitt-Trigger, SOIC-14, NXP HEF4093BT,653
Unit Price (€ / pc.)
0.7259 € *
Available: 6,349 pcs.
Total Price:
0.73 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7259 €
10 pcs.
0.4522 €
50 pcs.
0.3332 €
250 pcs.
0.2701 €
1000 pcs.
0.2332 €
*incl. VAT plus shipping costs
Subject to prior sale
Quad 2-input NAND Schmitt trigger, HEF4093BT,653, NXP
The HEF4093BT is a quad two input NAND gate. Each input has a Schmitt trigger circuit. The gate switches at different points for positive going and negative going signals. The difference between the positive voltage (VT+) and the negative voltage (VT-) is defined as hysteresis voltage (VH).
Features
- Schmitt trigger input discrimination
- Fully static operation
- 5 V, 10 V, and 15 V parametric ratings
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOIC-14 | |
| max. operating temperature | 125 °C | |
| Assembly | SMD | |
| Input voltage | 15 V | |
| min. operating temperature | -40 °C | |
| Output current | 3.4 mA | |
| Product type | Quad 2-Input NAND Schmitt-Trigger |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85423390 |
| Original Packaging | Reel with 2,500 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
