HEF4069UBT,653 | NXP

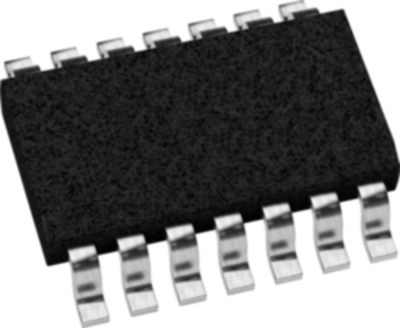

Hex Unbuffered Inverter, SOIC-14, NXP HEF4069UBT,653
Unit Price (€ / pc.)
0.1845 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
0.18 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1845 €
50 pcs.
0.1714 €
250 pcs.
0.1583 €
*incl. VAT plus shipping costs
Subject to prior sale
Hex unbuffered inverter, HEF4069UBT,653, NXP
The HEF4069UBT,653 is a general purpose hex unbuffered inverter. Each inverter has a singlestage. It operates over a recommended VDD power supply range of 3 V to 15 V referenced to VSS (usually ground). Unused inputs must be connected to VDD, VSS, or another input.
Features
- Fully static operation
- Standardized symmetrical output characteristics
- Complies with JEDEC standard JESD 13-B
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C | |
| Assembly | SMD | |
| Output current | 3.4 mA | |
| Enclosure | SOIC-14 | |
| Input voltage | 15 V | |
| Product type | Hex Unbuffered Inverter |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| Country of origin | TH |
| Original Packaging | Bar with 57 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
