HEF40106BT | NXP

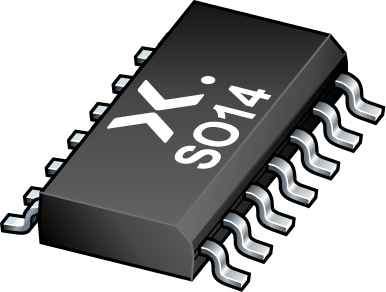

Hex Inverting Schmitt-Trigger, SOIC-14, NXP HEF40106BT
No longer available from manufacturer
Unit Price (€ / pc.)
1.1662 € *
Available: 90 pcs.
Total Price:
1.17 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1662 €
10 pcs.
0.8211 €
100 pcs.
0.7021 €
500 pcs.
0.6188 €
1000 pcs.
0.5593 €
*incl. VAT plus shipping costs
Subject to prior sale
Hex inverting Schmitt trigger, HEF40106BT, NXP
The HEF40106BT provides six inverting buffers. Each input has a schmitt trigger circuit. The inverting buffer switches at different points for positive going and negative going signals. The difference between the positive voltage (VT+) and the negative voltage (VT-) is defined as hysteresis voltage (VH). The HEF40106BT may be used for enhanced noise immunity or to square up slowly changing waveforms.
Features
- Schmitt trigger input discrimination
- 5 V, 10 V, and 15 V parametric ratings
- Fully static operation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C | |
| Assembly | SMD | |
| Output current | 3.4 mA | |
| Enclosure | SOIC-14 | |
| Input voltage | 15 V | |
| Product type | Hex Inverting Schmitt-Trigger |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| Country of origin | CN |
| Original Packaging | Bar with 57 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
