74HC02D | NXP

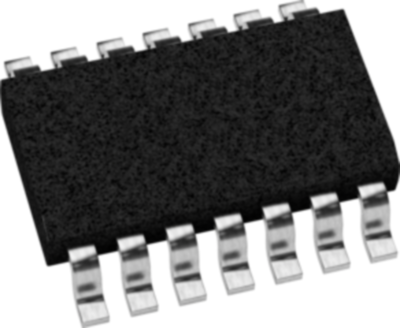

Quad 2-Input NOR Gate, SOIC-14, NXP 74HC02D
Unit Price (€ / pc.)
0.1975 € *
Available: 97 pcs.
Quad 2-input NOR gate, 74HC02D, NXP
The 74HC02D is a quad two input NOR gate in 14 pin SOIC package. This high speed Si-gate CMOS device comply with JEDEC standard number 7A. The 74HC02D is pin compatible with low power schottky TTL (LSTTL).
Features
- Supply voltage range from 2V to 6V
- CMOS level input
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOIC-14 | |
| Output current | 5.2 mA | |
| Assembly | SMD | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Product type | Quad 2-Input NOR Gate | |
| Input voltage | 6 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| Country of origin | CN |
| Original Packaging | Bar with 57 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
