VIT-CRF256 | NOVA
Resistor kit, 5 %, VIT-CRF256
Unit Price (€ / pc.)
36.7472 € *
Standard delivery time from the manufacturer is: 15 Weeks

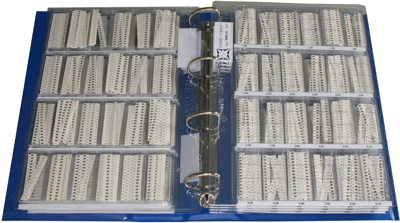

Laboratory kits with resistors, type Nova Comp-Cards SBR/SMR/CBR/CCR/VIT.
In vacuum-formed PVC flatpaks with a transparent snap-on lid and holes for storage in ring binders (described after the resistor kits).
50 wire-wound resistors, 3.5 and 4.3 W, type VIT-CRF256.
Flame retardant, failsafe fusible resistor on 230 V; Brand: Vitrohm. Type/load rating: CRF256-4/3.5 W, CRF257-4/4.3 W. Tolerance: ±5.0 %. Connections: axial. Content: 50 items, 10 values with 5 resistors each from 10R to 220R, 3.5 W and 4,3 W.
Type: VIT-CRF256, kit
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 350 °C | |
| resistance values | 10 Ω to -220 Ω | |
| Design | axial | |
| Leistungsbereich | 3.5-4.5 W | |
| min. operating temperature | -55 °C | |
| Tolerance | ±5 % | |
| Assembly | THT |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PT |
| Original Packaging | Ammopack with 1 piece |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
