05108980109 | Norma Group

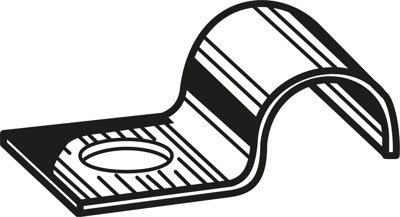

Cable clamp, max. bundle Ø 9 mm, steel, galvanized, silver, (L x W x H) 22.5 x 10 x 6.2 mm, 05108980109
Unit Price (€ / pc.)
0.9163 € *
Available: 224 pcs.
Total Price:
91.63 € *
Price list
Quantity
Price per unit*
100 pcs.
0.9163 €
300 pcs.
0.8211 €
1000 pcs.
0.7140 €
3000 pcs.
0.6069 €
*incl. VAT plus shipping costs
Subject to prior sale
Metal cable clips, type 510.
With one fastening strap, compliant with DIN 72571. Made of galvanized rust-protected steel; Material thickness: 1.0 mm (1.5 mm as of type 112). Strap width: 10 mm (12 mm as of type 112). Fastening hole diameter: 4.8 mm (5.8 mm as of type 112).
Technical attributes (type, cable diameter (D), clip length): 109, D 9.0 mm, L 22.5 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Self-adhesive | No | |
| Height | 6.2 mm | |
| Material | steel, galvanized | |
| Colour | silver | |
| max. Bundle diameter | 9 mm | |
| Length | 22.5 mm | |
| Width | 10 mm | |
| Product type | cable clamp |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 73269098 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
