TM-7EP-105-1M OHM | Nidec Copal
Cermet trimmer potentiometer, 3 turns, 1 MΩ, 0.5 W, THT, on top, TM-7EP-105-1M OHM
Unit Price (€ / pc.)
3.2130 € *
Available: 100 pcs.
Leadtime: On Request **
Total Price:
3.21 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2130 €
10 pcs.
2.8203 €
100 pcs.
2.4752 €
250 pcs.
2.3800 €
1000 pcs.
2.2253 €
*incl. VAT plus shipping costs
**Subject to prior sale

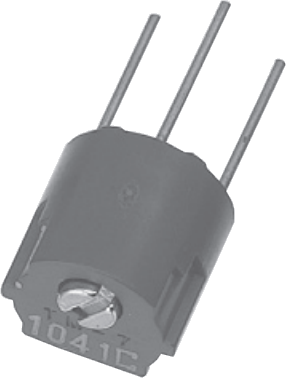

Trimmer potentiometer, TM-7EP-105-1M OHM, Nidec Copal
Achieve fine adjustments with the 3-turn cermet trimmer, which offers exceptional precision. Experience minimal backlash for accurate settings. The trimmer is constructed using UL Recognized 94V-0 resin material. Can be adjusted from the top.
Technical specifications
| ohmic resistance | 1 MΩ | |
| Connection | solder pin | |
| Version | cermet trimmer potentiometer | |
| Width | 6 mm | |
| Rotary range, electrical | 900 ° | |
| Mechanic rotary range | 1080 ° | |
| Seeting | on top | |
| Height | 6 mm | |
| Contact distance | RM 2.5 | |
| Length | 7 mm | |
| Power | 0.5 W | |
| max. number of revolutions | 3 | |
| max. operating temperature | 120 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Tolerance | ±10 % | |
| Temperature coefficient | ±100 ppm/K | |
| Track Taper | linear |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85334010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
