ST-4EMB-500-50 OHM | Nidec Copal

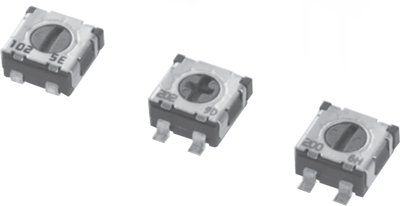

Cermet trimmer potentiometer, 50 Ω, 0.25 W, SMD, on top, ST-4EMB-500-50 OHM
Unit Price (€ / pc.)
1.0472 € *
Available: 40 pcs.
Total Price:
1.05 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0472 €
10 pcs.
0.9639 €
50 pcs.
0.8449 €
250 pcs.
0.7378 €
1000 pcs.
0.6426 €
*incl. VAT plus shipping costs
Subject to prior sale
Trimmer potentiometer, ST-4EMB-500-50 OHM, Nidec Copal
Single turn surface mount cermet trimmer. RoHS compliant. Sealed construction. Stopper structure prevents terminal pin from being open. Cross slot rotor suitable for automatic adjustment.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 125 °C | |
| max. number of revolutions | 1 | |
| Assembly | SMD | |
| Track Taper | linear | |
| min. operating temperature | -55 °C | |
| Temperature coefficient | ±250 ppm/K | |
| Contact distance | RM 2.35 | |
| Connection | gull-wing | |
| Tolerance | ±20 % | |
| Length | 4.5 mm | |
| Power | 0.25 W | |
| Width | 5 mm | |
| Seeting | on top | |
| ohmic resistance | 50 Ω | |
| Height | 2 mm | |
| Version | cermet trimmer potentiometer |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85334010 |
| Country of origin | CN |
| Original Packaging | Bar with 50 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
