ST-4EMB-203-20K OHM | Nidec Copal
Cermet trimmer potentiometer, 20 kΩ, 0.25 W, SMD, on top, ST-4EMB-203-20K OHM
Unit Price (€ / pc.)
1.5946 € *
Available: 90 pcs.
Total Price:
15.95 € *
Price list
Quantity
Price per unit*
10 pcs.
1.5946 €
50 pcs.
1.4042 €
250 pcs.
1.2138 €
1000 pcs.
1.0591 €
2500 pcs.
0.9639 €
*incl. VAT plus shipping costs
Subject to prior sale

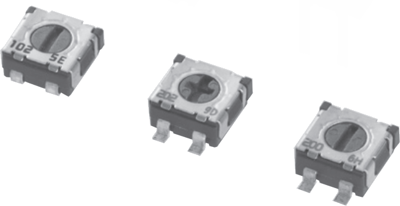

Trimmer potentiometer, ST-4EMB-203-20K OHM, Nidec Copal
Single turn surface mount cermet trimmer. RoHS compliant. Sealed construction. Stopper structure prevents terminal pin from being open. Cross slot rotor suitable for automatic adjustment.

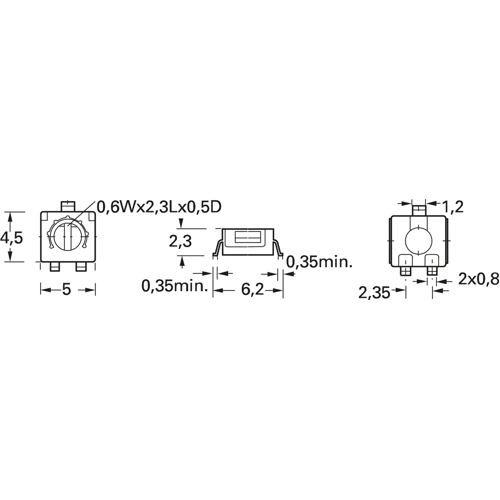

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 4.5 mm | |
| max. operating temperature | 125 °C | |
| Height | 2 mm | |
| Version | cermet trimmer potentiometer | |
| max. number of revolutions | 1 | |
| Connection | gull-wing | |
| Contact distance | RM 2.35 | |
| Assembly | SMD | |
| ohmic resistance | 20 kΩ | |
| Power | 0.25 W | |
| Tolerance | ±20 % | |
| Temperature coefficient | ±100 ppm/K | |
| min. operating temperature | -55 °C | |
| Width | 5 mm | |
| Track Taper | linear | |
| Seeting | on top |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 50 pieces |
| Country of origin | CN |
| Customs tariff number | 85334010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
