ST-4EMB-201-200 OHM | Nidec Copal
Cermet trimmer potentiometer, 200 Ω, 0.25 W, SMD, on top, ST-4EMB-201-200 OHM
Unit Price (€ / pc.)
0.9639 € *
Available: 115 pcs.
Total Price:
9.64 € *
Price list
Quantity
Price per unit*
10 pcs.
0.9639 €
50 pcs.
0.8449 €
500 pcs.
0.6783 €
1000 pcs.
0.6307 €
*incl. VAT plus shipping costs
Subject to prior sale

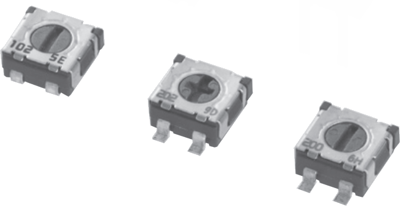

Trimmer potentiometer, ST-4EMB-201-200 OHM, Nidec Copal
Single turn surface mount cermet trimmer. RoHS compliant. Sealed construction. Stopper structure prevents terminal pin from being open. Cross slot rotor suitable for automatic adjustment.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature coefficient | ±100 ppm/K | |
| max. number of revolutions | 1 | |
| Track Taper | linear | |
| Assembly | SMD | |
| Width | 5 mm | |
| Height | 2 mm | |
| Power | 0.25 W | |
| Length | 4.5 mm | |
| Contact distance | RM 2.35 | |
| Version | cermet trimmer potentiometer | |
| min. operating temperature | -55 °C | |
| Connection | gull-wing | |
| Tolerance | ±20 % | |
| max. operating temperature | 125 °C | |
| ohmic resistance | 200 Ω | |
| Seeting | on top |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85334010 |
| Original Packaging | Reel with 500 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
