ST-4EMB-103-10K OHM | Nidec Copal

Cermet trimmer potentiometer, 10 kΩ, 0.25 W, SMD, on top, ST-4EMB-103-10K OHM

Order No.: 65E1518
EAN: 4099879888976
MPN:
ST-4EMB-103-10K OHM
Series: ST-4

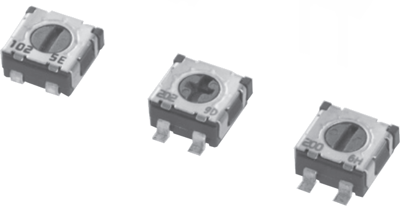

ST-4EMB-103-10K OHM Nidec Copal Trimmer Potentiometers Image 1
ST-4EMB-103-10K OHM Nidec Copal Trimmer Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
1.0829 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
54.14 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
1.0829 €

Trimmer potentiometer, ST-4EMB-103-10K OHM, Nidec Copal

Single turn surface mount cermet trimmer. RoHS compliant. Sealed construction. Stopper structure prevents terminal pin from being open. Cross slot rotor suitable for automatic adjustment.

Technical specifications
Filter Property Value
Length 4.5 mm
max. operating temperature 125 °C
Height 2 mm
Version cermet trimmer potentiometer
max. number of revolutions 1
Connection gull-wing
Contact distance RM 2.35
Assembly SMD
ohmic resistance 10 kΩ
Power 0.25 W
Tolerance ±20 %
Temperature coefficient ±100 ppm/K
min. operating temperature -55 °C
Width 5 mm
Track Taper linear
Seeting on top
Logistics
Property Value
Original Packaging Reel with 500 pieces
Country of origin CN
Customs tariff number 85334010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
RoHS conform Yes
